Q4040J7TP

Техническая спецификация
Manufacturer     Littelfuse Inc.
Series     -
Packaging     Tube
Part Status     Active
Triac Type     Alternistor - Snubberless
Voltage - Off State     400V
Current - On State (It (RMS)) (Max)     40A
Voltage - Gate Trigger (Vgt) (Max)     2V
Current - Non Rep. Surge 50, 60Hz (Itsm)     335A, 400A
Current - Gate Trigger (Igt) (Max)     100mA
Current - Hold (Ih) (Max)     100mA
Configuration     Single
Operating Temperature     -40°C ~ 125°C (TJ)
Mounting Type     Through Hole
Package / Case     TO-218X-3 (Isolated)
Supplier Device Package     TO-218X Isolated

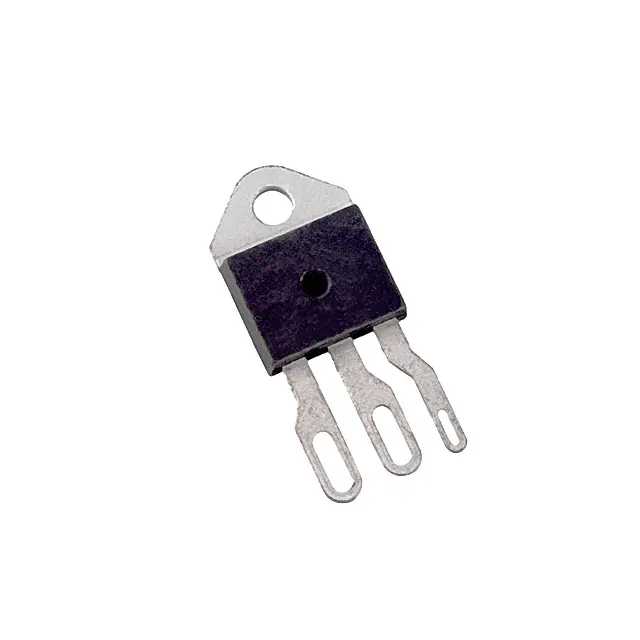

TRIAC ALTERNISTOR 400V TO218X - TRIAC Alternistor - Snubberless 400V 40A Through Hole TO-218X Isolated
Тиристоры Q4040J7TP
Datasheet Q4040J7TP (PDF)
